Product data sheet

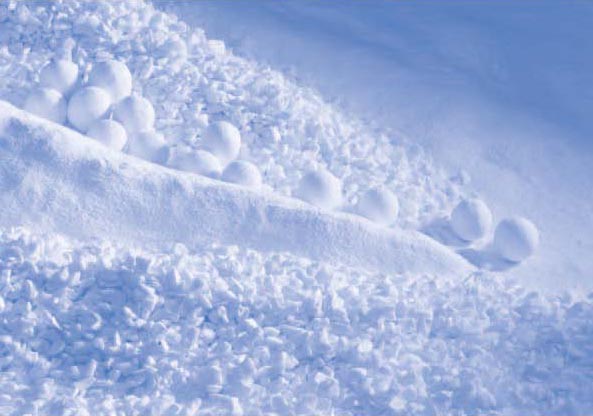

Tabular Alumina

tabular alumina

Chemical Composition(%) All Size(1) -45 micron L1 -45 micron STD -20 micron
Al2O3 by difference(typical) 99.5 99.5 99.1 99.3
Na2O 0.40 0.40 0.60 0.40
SiO2 0.09 0.09 0.12 0.15
Fe Magnetic 0.02 0.02 0.30 0.02

Physical Properties
Bulk Specific Gravity(g/cm3) ≥3.50
Apparent Porosity(%) 5
Water Absorption(%) 1.50

All data are based upon standard test methods.
(1)All sizes excluding -45 micron L1,-45 micron STD and -20 micron.


Open Sizes-Particle SizeDistribution
DIN(mm) Tyler(mesh) Typical(%) Min/Max(%)
0-3mm(-6mesh)
+3.35mm

6

1

0-8
+2.0mm 9 32
+1.0mm 16 29
-0.125mm
0-1mm(-14mesh)
+1.4mm
115

12
7

1
1-21

0-2
+1.0mm 16 11
+0.5mm 32 36
-0.106mm
0-0.5mm(-28mesh)
+0.71mm
150

24
14

1
5-26

0-3
+0.5mm 32 14
+0.25mm 60 37
-0.045mm
0-0.3mm(-48mesh)
+0.3mm
325

48
9

1
2-20

0-5
+0.25mm 60 3
+0.125mm 115 29
-0.045mm 325 29 15-45
0-0.2mm(-65mesh)
+0.212mm

65

3

0-5
+0.125mm 115 12
+0.063mm 250 38
-0.045mm
-45 micron LI(-325mesh LI)
+0.063mm
325

250
41

0
25-55

0-1
-0.045mm
-45 micron STD(-325mesh STD)
+0.063mm
325

250
99

0
95-100

0-2
-0.045mm
-20 micron
+0.20mm
325

635
98

5
95-100

0-10
Cilas d50   2.0(um) max.3.1(um)

Clased Sizes-Particle Size Distribution
DIN(mm) Tyler(mesh) Typical(%) Min/Max(%)
3-6mm(3-6mesh)
+6.3mm

1/4 in(ASTM E-11 inch)

1

0-4
+5.0mm - 22
+4.0mm 5 40
-2.0mm
2-5mm(1/4 inch-8mesh)
+6.3mm
9

1/4(ASTM E-11 inch)
1

1
0-3

0-3
+5.0mm - 14
+4.0mm 5 31
-2.0mm
1-3mm(6-14mesh)
+4.0mm
9

5
2

1
0-6

0-2
+3.35mm 6 4
+2.0mm 9 52
-1.0mm
1-2mm or 8-14mesh
+3.35mm
16

6
2

1
0-10

0-1
+2.0mm 9 11
+1.4mm 12 56
-1.0mm 16 3 0-10
0.5-1mm(14-28mesh)
+1.4mm

12

1

0-2
+1.0mm 16 19
+0.71mm 24 50
-0.5mm
0.2-0.6mm(28-48mesh)
+0.71mm
32

24
4

1
0-10

0-2
+0.5mm 32 11
+0.25mm 60 81
-0.212mm 65 3 0-7

The typical product properties are based upon the actual averages from product data.The Min/Max data show our standard product specification data for these products.other sizes re available upon request.

Packaging:25kg paper bags on 1.5mt pallets.

Tabular Alumina is a pure sintered a-alumina material that has been fully densifed by rapid-sintering without the use of sintering aids at temperatures in excess of 1800℃.Tabular Alumina has characteristic large,well developed hexagonal tablet shaped a-alumina crystals of up to 200um length.The excellent thermal volume stability and thermal shock characteristics can be attributed to its specific microstructure:low open porosity and large crystals with closed spherical pores,which are entrapped upon re-crystallization during rapid sintering.Tabular alumina has extremely high refractoriness,high mechanical strenght and abrasion resitance,very good chemical purity,excellent dielectric properties and good resistance against acid and alkali corrosion.
Tabular Alumina is the aggregate of choice in unshaped and shaped high performance refractories.it is used in a variely of industries such as steel,foundry,cement,petrochemical,ceramic and waste incineration.other common applications include its use in electrical insulators,kiln furniture and as a catalyst support,Ground Tabular is an excellent product to be used as a filler in epoxy or resin systems where high dielectric strength,thermal conducivity or abrasion resistance is desired.
