◆ Classification Temperature: 1050-1600℃

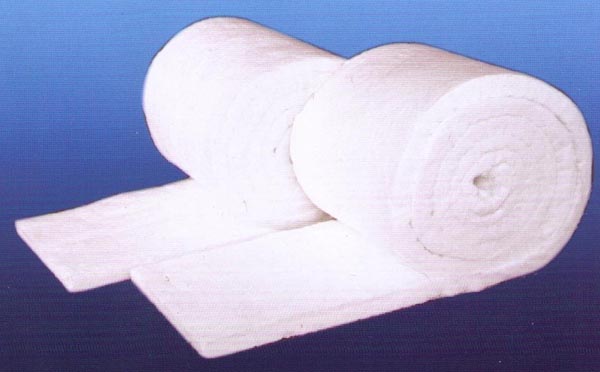

◆ Description: Ambition ceramic fiber blanket is a kind of continuous-noil flat-style fiber blanket and needle-punching processing can further enhance the tensile strength and flat surface. The fiber blanket does not contain any bonding agent. Ambition ceramic fiber blanket has excellent chemical corrosion-resistant performance (excepting hydrofluoric acid, phosphoric acid and strong alkali such as Na2O and K2O). The performance of Ambition ceramic fiber blanket won't be influenced by oil and water. Its thermal performance and physical properties can be retrieved through drying. Ambition ceramic fiber blanket is produced with spun technology. This high-quality fiber blanket has excellent processing or construction strength and anti-high temperature performance which can meet demands for the application of heat insulation on various hot faces and cold faces in different furnaces. It is a new type of refractory and insulating materials provided by our company for customers. The product is white with formal dimension and integrates the performance of heat insulation and thermal preservation together.
◆ Product Characteristics:
1. Excellent chemical stability
2. Excellent thermal stability
3. Excellent tensile strength
4. Low thermal conductivity
5. Low heat storage
◆ Technical Index:
Type
1050
1260
1400
Code
ARX-1
ARX-2
ARX-3
Shrinkage on heating %
950℃×24h≤-3
1000℃×24h-3
1350℃×24h-3
Theoretical thermal conductivity
Average 200℃
0.045--0.060
0.052--0.070
w/m.k
128kg/
Average400℃
0.085--0.110
0.095--0.120
m3
Average600℃
0.152--0.20
0.164--0.210
Theoretical volume and density (kg/m3)
96/128
Specification mm
7200×610×20
7200×610×20
3600×610×50
Package
Woven Bag
Carton
Quality environment system certification
ISO9001-2000,ISO14001-1996
◆ Application Range:
1. The insulating material for wall lining and back lining of industrial furnaces and heating devices
2. Insulating materials of high-temperature equipment
3. Material to produce module/folded module
